Reinforcement bar (rebar) and mesh is a critical component in modern concrete construction, providing tensile strength to counteract concrete’s inherent brittleness. In Australia, the process of tying reinforcement bar and mesh follows stringent standards and practical methodologies to ensure structural integrity, compliance with building codes, and long-term durability.
Materials and Tools for Reinforcement Bar & Mesh Tying
Types of Tying Materials
Reinforcement bar and mesh tying primarily employs two materials: tie wire and bag ties (loop ties).
- Tie Wire:
- Made from 1.57 mm annealed wire, tie wire is available in black, galvanised, or stainless-steel variants. Its high tensile strength and durability make it suitable for large-scale projects, though manual twisting with specialised tools is required.
- Compliance with Australian Standards (AS/NZS 4671) ensures tie wire resists corrosion, particularly in coastal or high-moisture environments.
- Bag Ties:
- Pre-formed loop ties simplify installation by eliminating manual twisting. These are made from soft annealed wire, allowing quick fastening with a metal hook tool. While ideal for small-scale projects, their higher cost and lack of belt-pack compatibility limit use in large developments.
Essential Tools
- Manual Tools: Concreter’s nipper and/or hooked tie wire puller for twisting tie wire or bag ties.

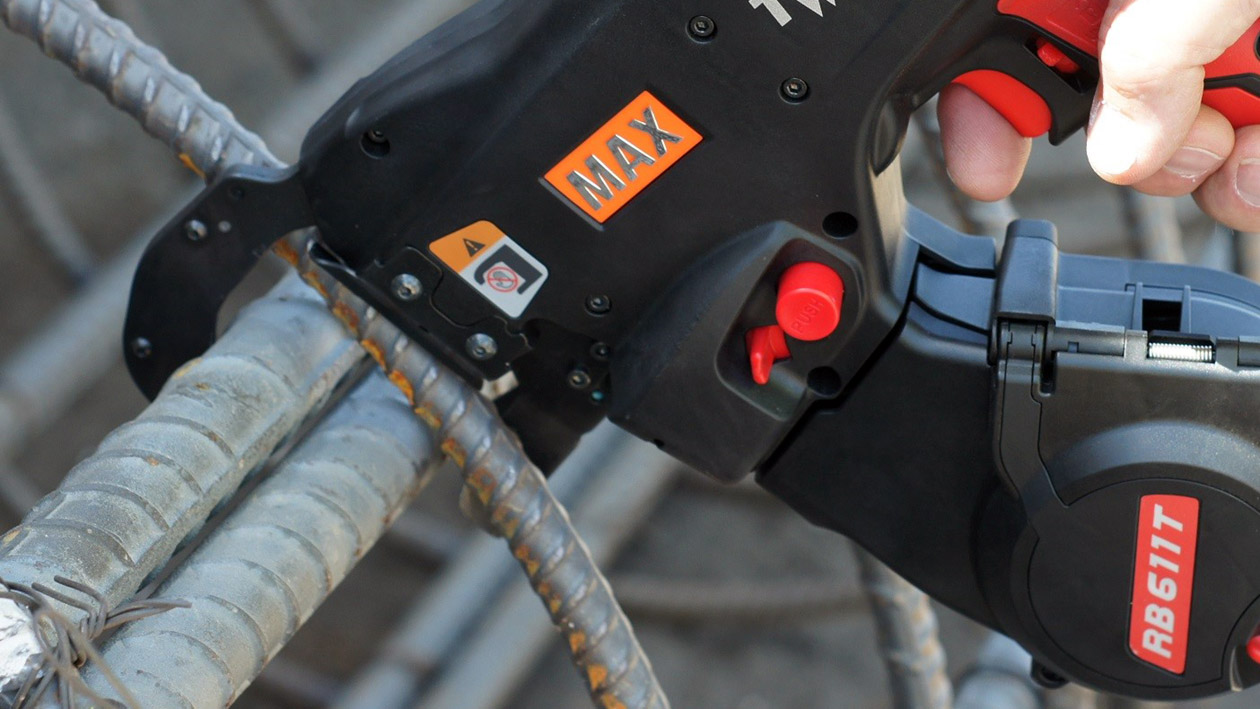

- Mechanical Tools: Battery-powered rebar tiers (e.g., Max Rebar Tie Gun RB441T or Rapid RT40) automate twisting, significantly accelerating the process on large sites.
Tying Techniques and Methodologies
CRSI-Recommended Tying Methods
The Concrete Reinforcing Steel Institute (CRSI) outlines four primary tying techniques, widely adopted in Australian practice:
- Snap Tie (Single Tie):
- Used for horizontal rebar in slabs. The wire is looped around intersecting bars and twisted until snug. This method prioritises speed but offers moderate strength.
- Wrap and Snap Tie:
- Ideal for vertical walls, this technique involves wrapping the wire around the vertical bar before twisting. It prevents horizontal bars from sliding downward during concrete pouring.
- Saddle Tie:
- A robust method for securing stirrups to beam corners or column ties. The wire is looped under the bottom bar, brought up both sides, and twisted tightly.
- Figure-Eight Tie:
- Designed for heavy rebar mats, this method creates an X-pattern over the intersection, distributing load evenly. It is critical for crane-lifted mats to prevent displacement.
Lapping and Overlap Requirements
Australian Standard AS 2870 mandates specific overlap lengths to maintain structural continuity:
- Trench Mesh: 500mm end-to-end overlap.
- Square Mesh: 400mm overlap.
- Reinforcing Bars: 40 times the bar diameter, secured with tie wire at intervals ≤ 300 mm
Compliance with Australian Standards
Positioning and Concrete Cover
The National Construction Code (NCC) specifies minimum concrete cover distances to prevent corrosion and ensure fire resistance:
- External Exposure: 40 mm from the outermost reinforcement.
- Internal Surfaces: 20 mm cover.
- Ground Contact: 40 mm if unprotected, 30 mm with a membrane.
Reinforcement must be elevated using bar chairs to maintain central positioning within the slab. Plastic or steel chairs are spaced ≤ 1 m apart to prevent sagging.
Environmental Considerations
- Galvanized or Stainless Steel: Required in coastal regions to resist saltwater corrosion.
Common Mistakes and Mitigation Strategies
- Insufficient Overlaps:
- Overlaps < 500 mm for trench mesh compromise load distribution.
- Mitigation: Use measuring tapes to verify overlap lengths.
- Improper Tool Selection:
- Manual twisting on large sites delays progress.
- Mitigation: Deploy battery-powered tiers for efficiency.
- Neglecting Bar Chairs:
- Mesh placed directly on soil risks uneven concrete cover.
- Mitigation: Use chairs at ≤ 1 m spacing.
- Incorrect Tie Spacing:
- Tying every 4th intersection (per CRSI) is often sufficient unless specifications demand tighter spacing
Tying rebar mesh demands adherence to AS/NZS standards, strategic material selection, and methodical execution. From snap ties in residential slabs to figure-eight ties in industrial projects, each technique serves distinct structural needs. Compliance with overlap rules, environmental safeguards, and tool innovation ensures longevity and safety. If you have any questions about your next reinforcement project, give the team at Reozone a call today!
