Reinforce your Foundations with Reinforcing Trench Mesh

Grade D500L Ribbed Wire Trench Mesh

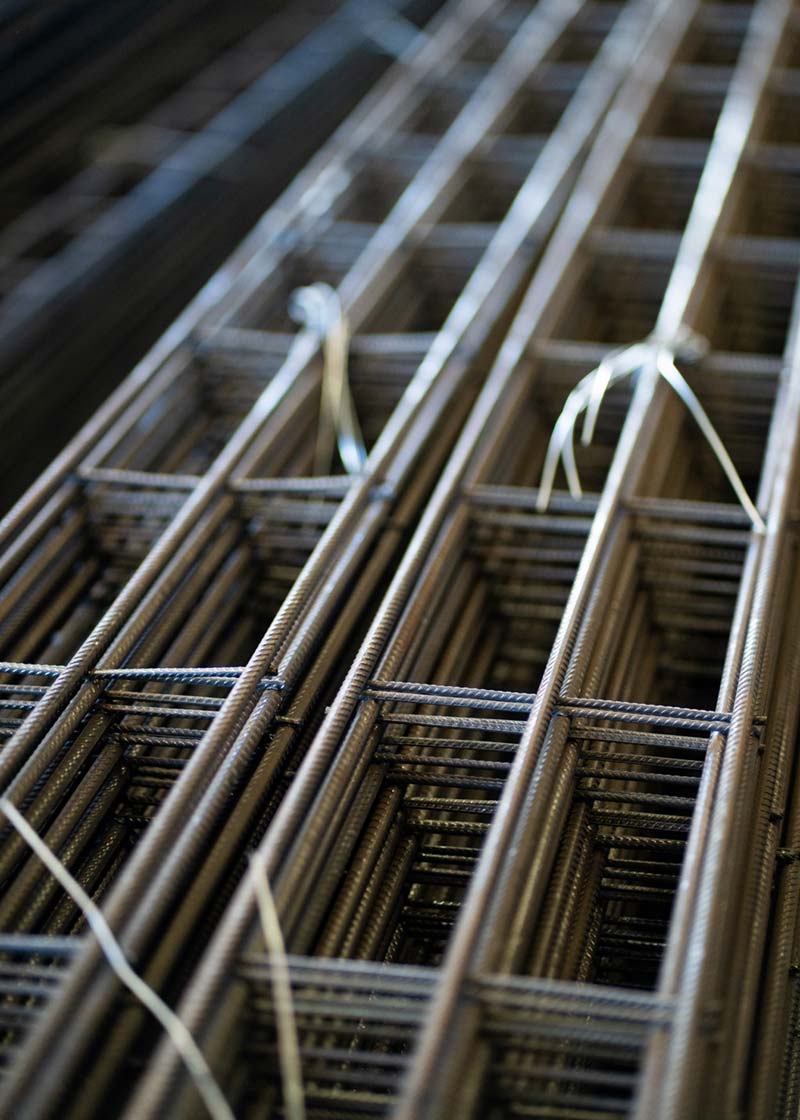

Reozone Trench Mesh is engineered to provide superior reinforcement for both residential and industrial concrete footings, beams, and various narrow applications. Our Trench Mesh sheets are available in 8mm, 11mm and 12mm and are manufactured to practical 6-meter lengths, with widths ranging from 200mm to 500mm, ensuring an ideal fit for trenches of any size. Manufactured from high-quality Grade D500L Ribbed Wire, our Trench Mesh offers exceptional strength and bonding capabilities.

For optimal performance, we recommend maintaining a minimum clearance of 50mm at the bottom, top, and edges of the footing. Additionally, trench mesh chairs or similar supports should be utilised to securely position the mesh during the concrete pouring process.

All Reozone Trench Mesh products comply with Australian Quality Standards, ensuring reliability and durability in every application.

  • AS/NZS 4671 – 2001 Steel Reinforcing Materials
Trench Mesh
Available for delivery across NSW

Trench Mesh Sizes

Our Trench Mesh is available in a range of widths to precisely match your trench dimensions, eliminating unnecessary cuts and wasted materials. Supportive Ligatures and Z-Bars are available in stock sizes or can be manufactured to site specification.

Reference Length (M) Width (M) Longitudinal Wires (mm) Cross Wires (mm) Mass Kg
L8TM200 6.0 0.2 7.6 @ 100 4 @ 300 7
L8TM300 6.0 0.3 7.6 @ 100 4 @ 300 9
L8TM400 6.0 0.4 7.6 @ 100 4 @ 300 12
L8TM500 6.0 0.5 7.6 @ 100 4 @ 300 14
L11TM200 6.0 0.2 10.65 @ 100 4.77 @ 300 13
L11TM300 6.0 0.3 10.65 @ 100 4.77 @ 300 18
L11TM400 6.0 0.4 10.65 @ 100 4.77 @ 300 22
L11TM500 6.0 0.5 10.65 @ 100 4.77 @ 300 27
L12TM200 6.0 0.2 11.9 @ 100 4.77 @ 300 16
L12TM300 6.0 0.3 11.9 @ 100 4.77 @ 300 22
L12TM400 6.0 0.4 11.9 @ 100 4.77 @ 300 27
L12TM500 6.0 0.5 11.9 @ 100 4.77 @ 300 33
Type Size (mm) Diameter (mm)
LIG102010 200 x 100 10
LIG102015 200 x 150 10
LIG102020 200 x 200 10
LIG102520 250 x 200 10
LIG102525 250 x 250 10
LIG103010 300 x 100 10
LIG103015 300 x 150 10
LIG103020 300 x 200 10
LIG103025 200 x 250 10
LIG103030 300 x 300 10
LIG103520 350 x 200 10
LIG103530 350 x 300 10
LIG104010 400 x 100 10
LIG104015 400 x 150 10
LIG104020 400 x 200 10
LIG104025 400 x 250 10
LIG104030 400 x 300 10
LIG104035 400 x 350 10
LIG104040 400 x 400 10
LIG104520 450 x 200 10
LIG104530 450 x 300 10
LIG104540 450 x 400 10
Type Size (mm) Diameter (mm)
LIGZ223 200 x 200 x 300 10
LIGZ2253 200 x 250 x 300 10
LIGZ233 200 x 300 x 300 10
LIGZ2353 200 x 350 x 300 10
LIGZ243 200 x 400 x 300 10
LIGZ2453 200 x 450 x 300 10
LIGZ253 200 x 500 x 300 10

Help Guides:

L11TM200 is a type of trench mesh reinforcing sheet used in concrete reinforcement for residential, industrial, and commercial buildings. The product code breaks down as follows:

  • L: Indicates low ductility grade (D500L)
  • 11: Refers to the diameter of the longitudinal wires, which are 10.65mm or 10.7mm
  • TM: Stands for Trench Mesh
    200: Indicates the width of the sheet in millimetres

Specifications of L11TM200:

  • Length: 6 meters
  • Width: 0.2 meters (200mm)
  • Longitudinal wires: 3 × 10.7mm diameter wires spaced at 100mm intervals
  • Cross wires: 4.77mm diameter wires spaced at 300mm intervals
  • Mass: Approximately 13-13.3 kg per sheet

This trench mesh is typically used for reinforcing concrete footings, beams, and narrow spaces in construction projects. It is manufactured to comply with Australian standards, including AS/NZS 4671 for steel reinforcing materials.

L11TM300 is a trench mesh reinforcing sheet used in construction, particularly for reinforcing concrete footings and beams in residential, industrial, and commercial buildings. The product code can be broken down as follows:

  • L: Low ductility steel
  • 11: 11mm diameter wire
  • TM: Trench Mesh
  • 300: 300mm width

This trench mesh has the following specifications:

  • Dimensions: 6m x 0.3m (length x width)
  • 4 longitudinal wires, each 10.7mm in diameter, spaced at 100mm centers
  • Cross wires are 4.75mm in diameter, spaced at 300mm centers
  • Mass per sheet: approximately 17.7kg
  • Made from Grade D500L ribbed reinforcing wire
  • Compliant with AS/NZS 4671 standard

L11TM300 is designed for concrete footings, beams, and general pavement applications. It provides structural reinforcement to help prevent cracking and increase the strength of concrete structures.

L12TM300 is a type of trench mesh reinforcing sheet used in construction, particularly for reinforcing concrete footings and beams in residential, industrial, and commercial buildings. The product code can be broken down as follows:

  • L: Low ductility steel
  • 12: 12mm diameter longitudinal wires
  • TM: Trench Mesh
  • 300: 300mm width

This trench mesh has the following specifications:

  • Dimensions: 6m x 0.3m (length x width)
  • 4 longitudinal wires, each 11.9mm in diameter, spaced at 100mm centers
  • Cross wires are 4.77mm in diameter, spaced at 300mm centers
  • Mass per sheet: approximately 21.2kg
  • Made from Grade D500L ribbed reinforcing wire
  • Compliant with AS/NZS 4671 standard

L12TM300 is designed for concrete footings, beams, and general pavement applications. It provides structural reinforcement to help prevent cracking and increase the strength of concrete structures.
