Thermal expansion is the phenomenon where materials change in size, length, area, or volume, in response to a change in temperature. This occurs because heating a material increases the kinetic energy of its molecules, causing them to move more vigorously and occupy more space. As a result, the material expands.
Types of Thermal Expansion
Thermal expansion can occur in one, two, or three dimensions.
- Linear Thermal Expansion: This refers to the change in length of a material. It is commonly described using the coefficient of linear expansion, which quantifies how much a material’s length changes with temperature [1].
- Area Thermal Expansion: This involves the change in surface area of a material. It is less commonly discussed but is significant in applications involving thin films or sheets.
- Volume Thermal Expansion: This describes the change in volume of a material, which is particularly relevant for gases and liquids. The coefficient of volume expansion is used to measure this change.
Coefficient of Thermal Expansion
The coefficient of thermal expansion is a material-specific value that indicates how much a material will expand per degree of temperature change. It varies with temperature and the material’s properties. For solids, the linear expansion coefficient is often used, while for liquids and gases, the volume expansion coefficient is more applicable [2].
Practical Examples
Thermal expansion is evident in everyday life, such as:
- Metal Lids on Glass Jars: Heating the metal lid causes it to expand more than the glass jar, making it easier to open.

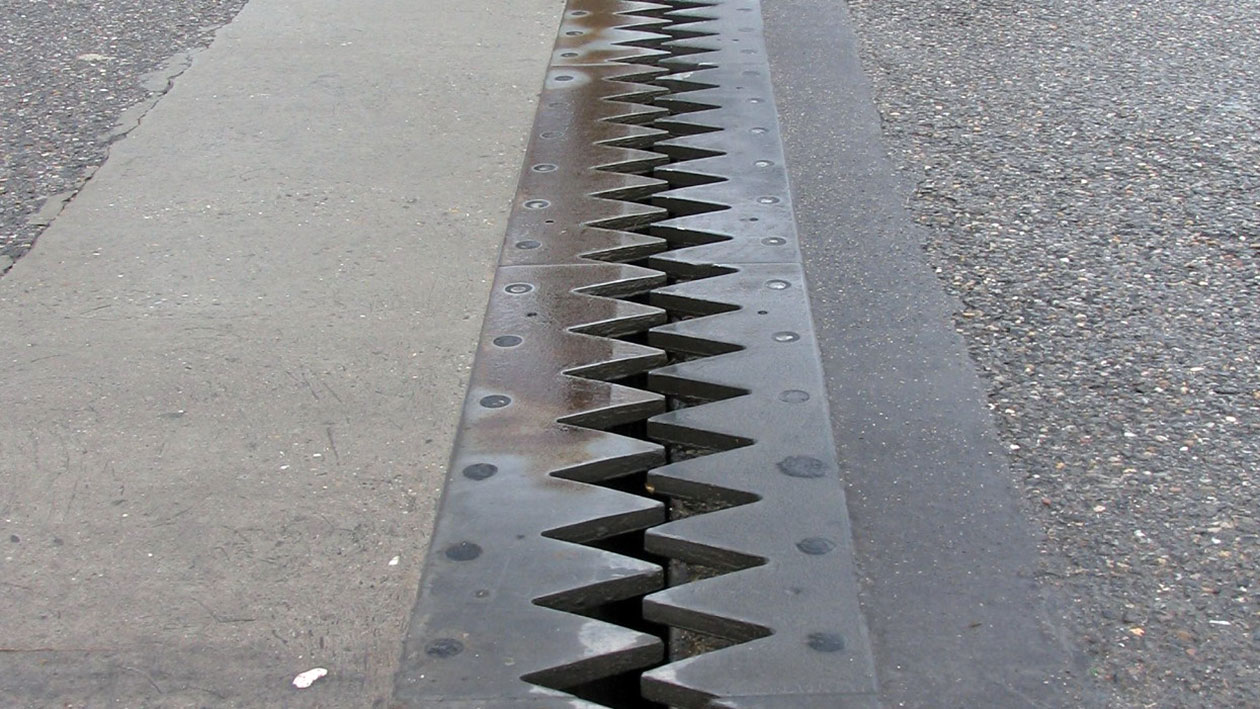

- Bridges and Railways: These structures are designed with expansion joints to accommodate changes in length due to temperature variations.
- Thermometers: The rise in mercury level in a thermometer is due to the thermal expansion of mercury as it heats up.
Considerations in Engineering
In engineering, thermal expansion is a critical consideration due to its impact on the structural integrity and functionality of materials and systems. Here are some key considerations:
1. Material Selection
Engineers must choose materials with suitable thermal expansion coefficients for the intended application. Different materials expand at different rates, and mismatched expansion can lead to stress and potential failure [3].
2. Structural Design
Structures such as bridges, buildings, and railways must accommodate thermal expansion to prevent buckling or cracking. This often involves incorporating expansion joints or designing components to allow for movement.
3. Welding and Fabrication
During welding, differential thermal expansion can cause distortion. Engineers need to adopt standard welding procedures to minimise heat build-up and distortion, such as using clamping jigs or specific welding sequences.
4. Piping Systems
In piping systems, thermal expansion can cause significant stress. Engineers use expansion loops, offsets, and joints to manage these changes and prevent damage to pipes and connected equipment.
5. Component Design
For components like springs, understanding the thermal expansion coefficients is crucial to ensure they can withstand temperature variations without losing functionality or failing.
6. Environmental Conditions
Engineers must consider the environmental conditions, such as temperature fluctuations, that materials and structures will be exposed to. This ensures that the design can accommodate the expected range of thermal expansion.
Mathematical Representation of Thermal Expansion
Formulas calculate the extent of expansion or contraction:
- Linear Expansion: ΔL = αLΔT (ΔL = change in length, α = coefficient of linear expansion, L = original length, ΔT = change in temperature)
- Area Expansion: ΔA = 2αAΔT (ΔA = change in area, A = original area)
- Volume Expansion: ΔV = 3αVΔT (ΔV = change in volume, V = original volume)
Factors Influencing Thermal Expansion
Several factors can influence the degree of thermal expansion:
- Material Type: Different materials exhibit different expansion rates. Metals, for example, generally expand more than plastics.
- Initial Temperature: Expansion is greater for a given temperature change at higher initial temperatures.
- Temperature Change Magnitude: Greater temperature differences lead to more significant expansions or contractions.
Applications and Implications of Thermal Expansion
Understanding thermal expansion is crucial in various fields:
- Engineering: Engineers consider thermal expansion when designing bridges, buildings, and other structures to ensure stability and prevent damage.
- Manufacturing: Precise control of thermal expansion is essential in processes like metal casting and the production of electronic components.
- Science and Research: Thermal expansion plays a role in various scientific instruments and experimental techniques.
Frequently Asked Questions
How much does steel expand when heated?
Steel expands when heated due to its thermal expansion properties. The expansion of steel is characterised by its linear thermal expansion coefficient, which indicates how much the material expands per degree of temperature increase.
To calculate the total expansion of a steel object, you can use the formula:
ΔL = L₀ × α × ΔT
where:
- ΔL is the change in length,
- L₀ is the original length,
- α is the linear expansion coefficient,
- ΔT is the change in temperature.
For example, if a steel rod is originally 100 inches long and the temperature increases by 5 degrees Fahrenheit, the expansion can be calculated as follows:
ΔL = 100 inches x 7.2 x 10⁻⁶ in/in°F x 5°F = 0.0036 inches
Thus, the steel rod would expand by 0.0036 inches under these conditions.
It’s important to note that the thermal expansion coefficient can vary slightly depending on the specific type of steel and its composition. Additionally, steel’s expansion properties can become more complex at higher temperatures due to phase changes and other factors.
Is thermal expansion good or bad?
Thermal expansion can have both positive and negative impacts, depending on the context in which it occurs.
Positive Aspects of Thermal Expansion
Mechanical Applications: Thermal expansion is useful in creating press fits, where one part is heated to expand and fit over another part, then cooled to form a tight fit. This is commonly used in manufacturing and assembly processes.
Bimetallic Strips: In devices like thermostats, thermal expansion is utilised to operate switches. As the temperature changes, the different expansion rates of metals in a bimetallic strip cause it to bend, triggering a mechanical response.
Engineering Solutions: Thermal expansion is considered in engineering designs to ensure that structures like bridges and railways can safely expand and contract with temperature changes, preventing damage.
Negative Aspects of Thermal Expansion
Structural Stress: In civil engineering, if structures like bridges or railways are not designed with expansion joints, the thermal expansion can cause buckling or structural failure.
Material Compatibility: When different materials with varying expansion rates are used together, it can lead to additional stresses and potential failure if not properly managed.
Brittle Materials: In materials like glass and ceramics, uneven thermal expansion can cause thermal stress, leading to fractures or damage.
